Webhooks

Summary

A webhook is an HTTPS request that TruAgents sends to a URL you choose the moment something happens, so your system doesn’t have to keep asking. Today, TruAgents sends webhooks from one place: the Send webhook step in a workflow. When a workflow reaches that step, TruAgents sends one POST with a JSON description of the workflow, the contact, and the inbound communication that started it. This page is the technical contract for receivers. For the in-app setup, see Send webhook step. For a complete CRM example, see Send hot leads to Salesforce.

Who this is for

Developers and technical admins building or configuring the endpoint that receives TruAgents webhooks.

The request

Property	Value
Method	`POST`
URL	The Endpoint URL configured on the step. Must be `https://` and resolve to a public address.
`Content-Type`	`application/json`, unless you configure your own `Content-Type` header on the step.
Extra headers	Every header configured on the step, sent as-is.
Body	One JSON object, described next.
Redirects	Not followed. A `3xx` response counts as a rejection.

Example body

{
  "id": "evt_1fa0308c9f2262fdaa5a1df703bfa3c8",
  "event": "workflow.step.webhook_sent",
  "timestamp": "2026-10-01T20:45:17Z",
  "data": {
    "workflow": {
      "id": "cmupz6h610006l4we5wbu7xd3",
      "name": "Hot lead → Salesforce",
      "run_id": "cq5xcdvh9m69rzqg8azxe0eb",
      "_links": {
        "self": "https://app.truagents.com/workflows/cmupz6h610006l4we5wbu7xd3/history?run=cq5xcdvh9m69rzqg8azxe0eb"
      }
    },
    "contact": {
      "id": "s6x3d0am6tofim3bmeaequ1u",
      "name": "Nathaniel Wisoky",
      "email": "nathaniel@example.com",
      "phone": "+16503775420",
      "_links": {
        "self": "https://app.truagents.com/contacts/s6x3d0am6tofim3bmeaequ1u"
      }
    },
    "communication": {
      "id": "x8f2kq0n3m5r7t9v1w4y6z0a",
      "channel": "email",
      "subject": "Enterprise pricing + demo this week?",
      "preview": "Hi there — we are evaluating vendors this week and your platform is on our shortlist. Could you send enterprise pricing for 40 seats and book a demo with our VP of Sales on Thursday afternoon?",
      "_links": {
        "self": "https://app.truagents.com/communications/x8f2kq0n3m5r7t9v1w4y6z0a"
      }
    }
  }
}

Field reference

Field	Type	Description
`id`	string	Event id, `evt_` followed by 32 hex characters. The same for every delivery attempt of the same step in the same run, so you can de-duplicate on it.
`event`	string	Always `workflow.step.webhook_sent`.
`timestamp`	string	When this delivery attempt was built, in UTC (RFC 3339). It can differ between attempts.
`data.workflow.id`	string	The workflow that fired.
`data.workflow.name`	string	The workflow name at the time of the run.
`data.workflow.run_id`	string	One run per workflow per inbound communication.
`data.workflow._links.self`	string	The run in the workflow’s History tab, including the AI’s reasoning for any Look for step.
`data.contact.id`	string	The TruAgents contact id. Stable across communications from the same contact.
`data.contact.name`	string	The full name as one string. TruAgents doesn’t send separate first and last names.
`data.contact.email`	string	The contact’s email address.
`data.contact.phone`	string	The contact’s phone number in E.164 format.
`data.contact._links.self`	string	The contact in TruAgents.
`data.communication.id`	string	The inbound email, SMS, or call that started the workflow.
`data.communication.channel`	string	`email`, `sms`, or `phone`.
`data.communication.subject`	string	The subject line. Emails only.
`data.communication.preview`	string	The first 280 characters of the message. For calls, the first 280 characters of the transcript, with `Agent:` and `Contact:` speaker labels.
`data.communication._links.self`	string	The communication in TruAgents.

Fields with no value are left out rather than sent empty. Your parser should treat every field under data.contact and data.communication as optional. The payload doesn’t include the AI’s decision details (reason or confidence), the tags applied by earlier steps, or a company name. Follow data.workflow._links.self to see the decision in TruAgents.

Responding

Return any 2xx status to confirm delivery. TruAgents ignores the response body.
Respond within 30 seconds. A slower response counts as a timeout.
Reply 2xx only after the event is safe: either the work is done, or the event is saved to a durable queue or database that your own worker retries. If you reply first and the work then fails, TruAgents won’t send the event again.

Failures and retries

What your endpoint does	What TruAgents does
Returns `2xx`	Marks the step Succeeded (“Posted webhook to `<host>`”) and continues the workflow.
Returns `3xx`, or `4xx` other than `408` / `429`	Marks the step Failed with “The webhook endpoint rejected the request”. No retry.
Returns `5xx`, `408`, or `429`, times out, or can’t be reached	Treats it as temporary and tries again, as described next.

Retry schedule

After a temporary failure, TruAgents sends the same request again roughly every 5 to 10 minutes, for up to 24 hours from when the workflow run started. Every attempt carries the same id.

If an attempt returns 2xx, the step is marked Succeeded and the workflow carries on from there. Steps that already ran before the webhook aren’t repeated.
If an attempt returns a non-retryable status (for example 400 or 401), the step is marked Failed and the retries stop.
If the endpoint is still failing after 24 hours, the run is marked Failed and TruAgents stops trying.

While a webhook is being retried, the run stays Running. For that communication, any later workflows and the automatic reply wait until the webhook succeeds, is rejected, or reaches the 24-hour limit. Fix outages on your endpoint quickly. For requests that will never succeed, return a 4xx other than 408 or 429, not a 5xx.

TruAgents also refuses to send, and marks the step Failed without retrying, when the URL isn’t https:// (“Webhook URL must use HTTPS”) or when the host resolves to a private, loopback, or internal address (“Webhook URL is not allowed”).

Choosing your status codes

Return 2xx once you have safely stored or processed the event.
Return 5xx when the failure is on your side and a later attempt could succeed (for example, your CRM is down).
For a request that can never succeed, such as a bad token or a payload you refuse, use a 4xx status other than 408 or 429. TruAgents stops trying. 408 and 429 are temporary, and TruAgents retries them.

Duplicates and ordering

Delivery is at least once. In rare cases, such as a timeout after your endpoint already processed the request, you receive the same event more than once.

De-duplicate on id. It’s the same across every attempt of the same step in the same run.
Or make your write idempotent. For example, upsert on data.contact.id or the contact’s email instead of always creating a record.
Don’t rely on ordering. Two communications from the same contact can arrive in either order.

Security

HTTPS only, public hosts only. TruAgents won’t deliver to http:// URLs, IP literals in private ranges, localhost, or internal hostnames.
Header values aren’t secret. Headers are stored with the workflow and anyone in your organization who can open the workflow can read them. Never put CRM credentials, API keys for other systems, or passwords in a header.
No request signing yet. TruAgents doesn’t sign webhook requests today. To make sure a request came from your workflow, use one of these:
- an endpoint URL that is long and random (no-code tools like Zapier and Make generate these), or
- a dedicated, low-privilege token in a header (for example X-Relay-Token) that your endpoint checks and that unlocks nothing else. Rotate it when people leave.
Personal data. The payload contains the contact’s name, email, phone, and the start of their message. Send it only to systems your company controls or has a data processing agreement with.

Where to see delivery results

Open the workflow, then the History tab, and click a run.

What happened	What the run shows
Your endpoint returned `2xx`	The Send webhook step is Succeeded with “Posted webhook to `<host>`”.
Your endpoint rejected the request (`3xx` or `4xx`), or the URL was refused	The step is Failed with the reason.
TruAgents is retrying (`5xx`, `408`, `429`, timeout, unreachable)	The run is Running. Individual attempts and their status codes aren’t listed in TruAgents today.
Retries ran out after 24 hours	The run is Failed.

Because TruAgents doesn’t show individual attempts yet, keep your own record on the receiving side. Zapier’s Zap history and Make’s History tab list every request they receive, and a custom endpoint should log the id, the status code it returned, and any error.

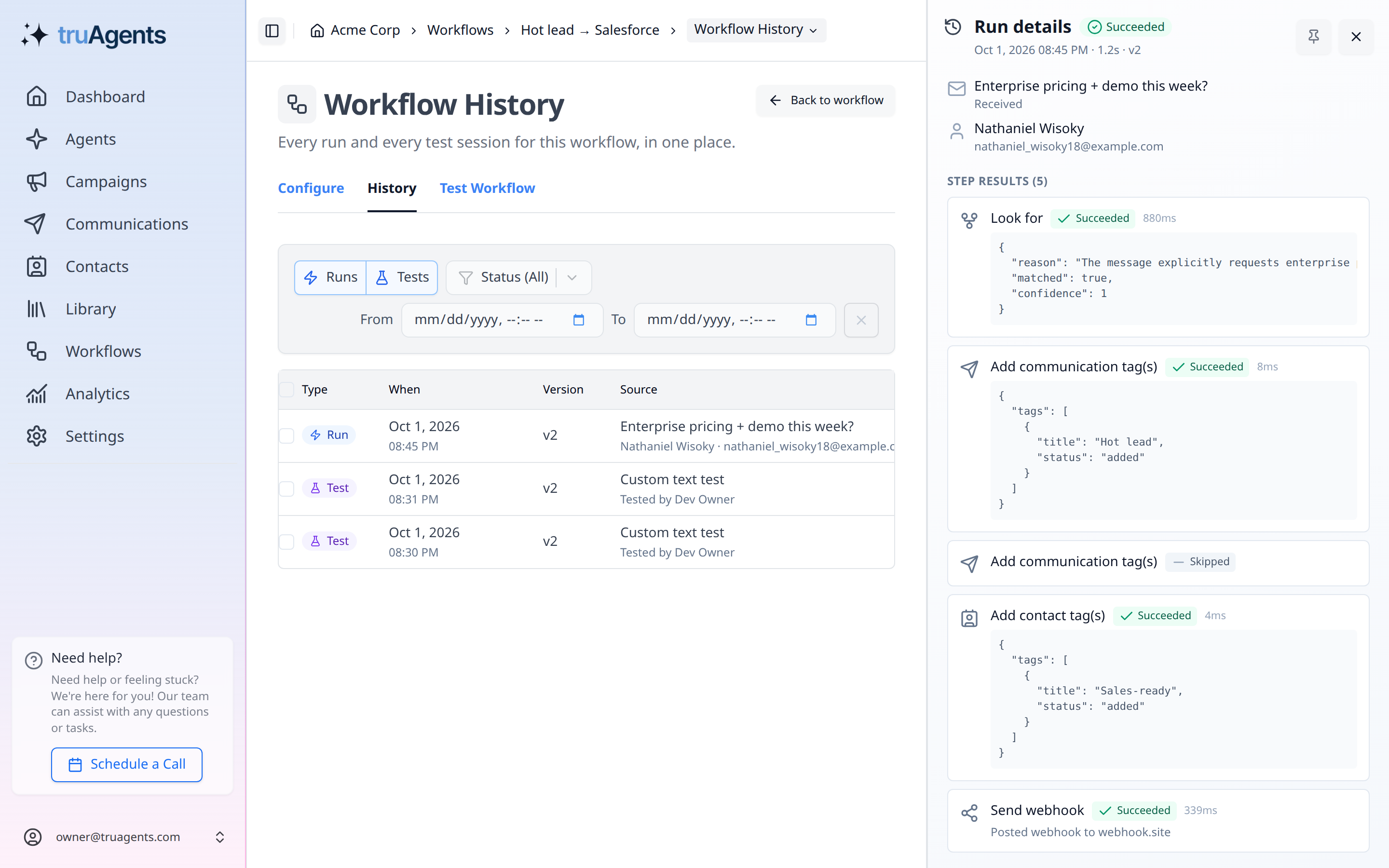

The History tab showing a succeeded Send webhook step
